Large piece waste resource treatment system

The Will Intelligent Large Garbage Resource Treatment System is mainly composed of crushing equipment, sorting equipment, and packaging equipment. It can crush large garbage to a size of 50mm, sort and recycle metal materials, wood materials, and sponge fabrics, achieving the true effect of resource utilization

Plan Introduction

Processing materialsUsed furniture, discarded mattresses, discarded sofas, wooden boxes, tree trunks (with a diameter of 30-100mm and a length not exceeding 1 meter), etc

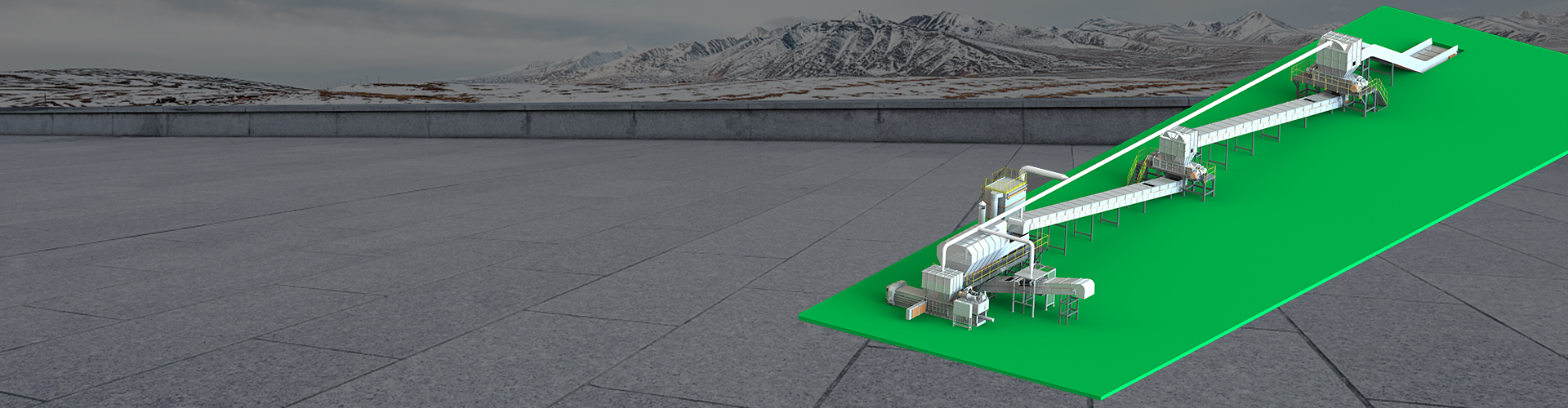

System compositionChain conveyor, large waste coarse crusher, large waste fine crusher, magnetic separator, belt conveyor, air separator, packaging machine, dust removal equipment, electrical control system, etc
Plan Introduction

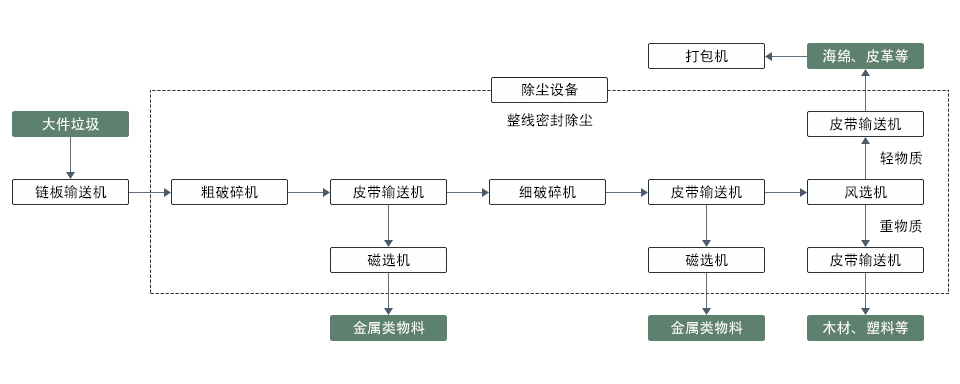

Large pieces of garbage are collected and transported to the large piece of garbage crushing and processing center. The chain conveyor transports the large pieces of garbage to the coarse crusher, crushing them into smaller sized materials. The iron remover sorts out metals such as iron wire and iron sheets, while other materials are transported to the fine crusher for further crushing through the belt conveyor. After crushing, the discharged material is further separated from the iron component through the magnetic separator, and other crushed materials are transported to the air separator through the belt conveyor. The air separator further screens the materials according to their weight, while light substances such as sponge leather are transported to the packaging machine. The entire line system is sealed for dust removal


Large piece waste resource treatment system

Old sofas and mattresses
Wooden cabinets, wooden doors, board waste, etc
Other types of large items

Metal materials
Wood, plastic, etc
Textiles, sponges, etc
