Single shaft shredder

    WES - Single shaft shredder

    WESH - Single shaft shredder

    Efficient and reliable crushing equipment

    Single shaft shredder is suitable for the processing of various waste materials, especially performing well in industrial environments.
    Its low-speed and high torque design allows it to maintain stability and durability even in harsh environments.
     In addition, the low cost of using a single axis shredder truly achieves the goals of high efficiency, energy conservation, and environmental protection

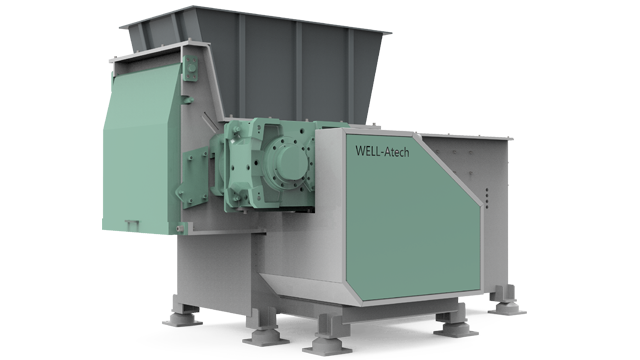

    The WES series single-shaft shredder is applied in the refinement and waste recovery of small to medium-sized materials across various industries. It primarily handles high-hardness, high-toughness rubber materials, plastic products, wood, and industrial waste paper, producing uniformly sized particles after shredding. This series of shredders features low rotational speed, high torque, and a compact structure, maintaining stability and durability in harsh industrial environments. The screen structure and blade layout can be customized based on the material characteristics and discharge requirements to achieve satisfactory results.

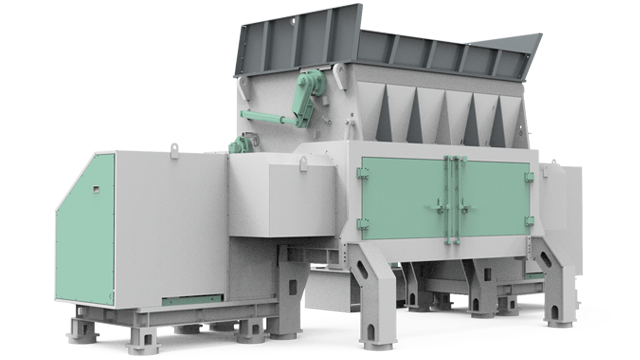

    The WES-H series single-shaft shredder is used for the volume reduction and resource recovery of various large waste and industrial garbage, with a processing capacity of approximately 6-15 tons per hour. The shredding chamber of the equipment is extended, allowing baled material to be directly shredded. The equipment is equipped with an arched swing-arm pressing device to enhance shredding efficiency. The front of the equipment is equipped with an open maintenance door, allowing for internal visualization and facilitating cleaning and maintenance.

    Our product advantages

    Energy Efficient + Maximum Cutting Force & Productivity.
    Shock Absorbing Gearbox reduces Stress on Drive Components

    Rotor Knives can be rotated and used on four edges before replacement.
    Long Life Counter Knives can be adjusted to maintain cutter clearance.
    Long Life Counter Knives can be adjusted to maintain cutter clearance
    Long Life Counter Knives can be adjusted to maintain cutter clearance
    Tested, Approved and Certified to the applicable CE safety standards
    Stand Alone Electrical Control Panel with Siemens PLC Control System.
    Rotor blades are made of DC53 alloy steel, high hardness, wear resistant and durable.
    Unique rotor blade layout ensures high crushing efficiency.Rotor blades can be used four times by changing its angle then we can replace it.

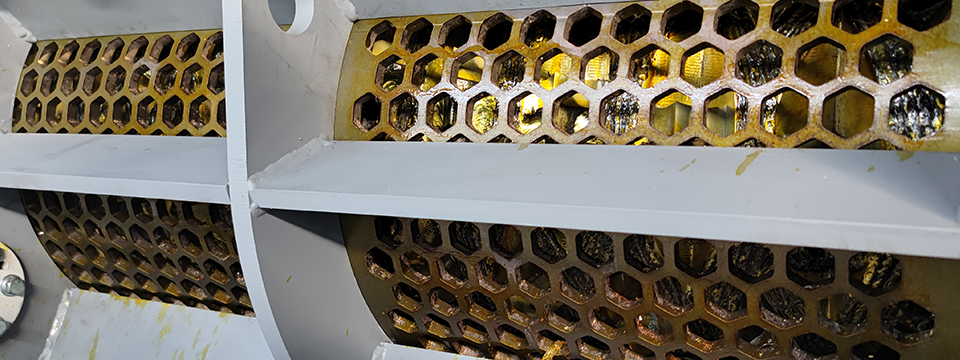

    Screen mesh size determines the end product size, 20 to 40mm available.Unique screen design for film and other light material.It is easy to complete the replacement.

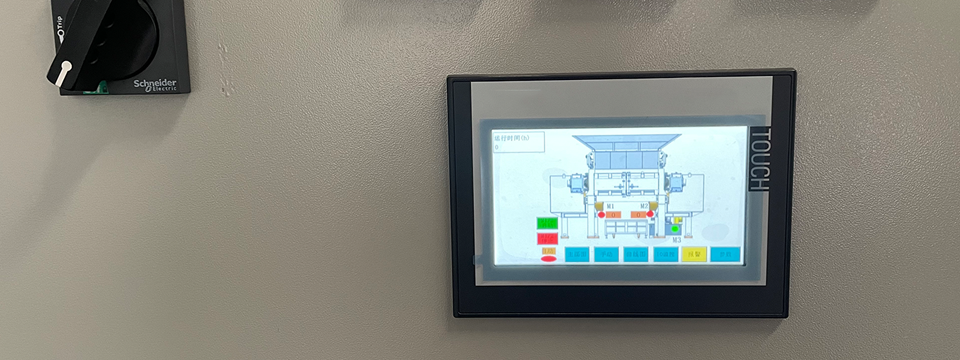

    Equipped with PLC system to achieve automatic control. Easy operation.Monitor key parameters to ensure the safety.Main electrical control components adopt Siemens, Schneider and other reliable international brands.

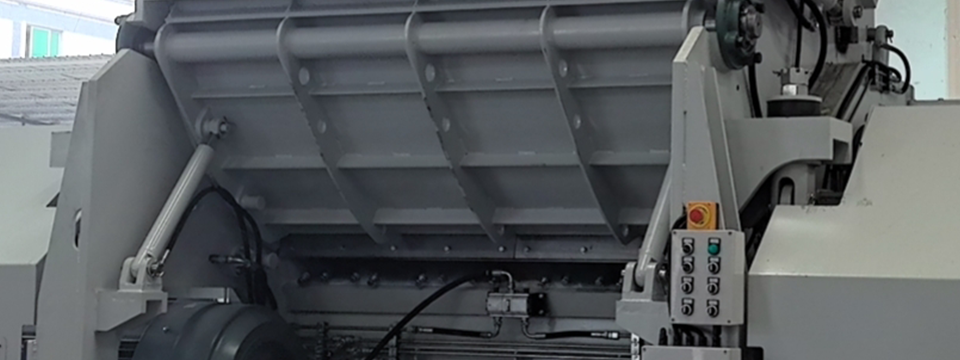

    Pushing evenly to improve the crushing efficiency.Slanted pusher eliminates residue.Can increase crushing efficiency by 60%.

    Which model suits your needs?

    Specification
    		WES-600WES-800
    		WES-1000
    		WES-1200
    		WES-1400
    		WESH-1500
    		WESH-2000
    		WESH-2200
    		WESH-3000
    Crushing chamber
    		500*580 mm
    		800*850 mm
    		1000*850 mm
    		1200*850 mm
    		1400*850mm
    		1700* 1500 mm1700* 2000 mm
    		1700*2200 mm
    		1970*3000 mm
    Rotor diameter
    		250 mm
    		400 mm
    		400 mm
    		400 mm
    		400 mm
    		460 mm460 mm
    		600 mm800 mm
    Rotor knife qty
    		263852588288118130150
    Counter knife qty
    		4446668812
    Motor power
    		18.5 kW/ 25 HP37 kW/ 50 HP45 kW/ 60 HP55 kW/ 75 HP75 kW/ 100 HP90 kW/ 120 HP
    		75+75 kW/ 200 HP
    		132+132 kW/ 354 HP
    		220+220 kW/ 590 HP
    Hydraulic drive capacity
    		1.5 kW/ 2 HP3.7 kW/ 5 HP
    		3.75 kW/ 5 HP
    		5.5 kW/ 7 HP
    		5.5 kW/ 7 HP
    		5.5 kW/ 7 HP
    		7.5 kW/ 10 HP
    		11 kW/ 15 HP
    		11 kW/ 15 HP
    Maximum output
    		500 kg/h1,500 kg/h2,000 kg/h3,000 kg/h4,500 kg/h6,000 kg/h8,000 kg/h10,000 kg/h15,000 kg/h
    Weight
    		1,750 kg4,150 kg
    		4,300 kg5,300 kg5,900 kg13,000 kg15,500 kg21,000 kg30,000 kg
    Dimension (Length)
    		1,760 mm2,850 mm2,850 mm2,850 mm2,850 mm2,550 mm2,550 mm2,750 mm2,850 mm
    Dimension (Width)
    		1,300 mm1,760 mm1,960 mm2,560 mm2,760 mm3,750 mm4,350 mm5,640 mm6,950 mm
    Dimension (Height)
    		1,850 mm2,210 mm2,220 mm2,330 mm2,330 mm2,750 mm2,750 mm2,900 mm3,700 mm





    • Plastic lumps

      Output

      PVC pipes

      Output

      Hard plastics

      Output

      Packaging

      Output

      Film

      Output

      Hollow body containers

      Output

    • Residual wood

      Output

      Wood composites

      Output

      Pallets

      Output

      Waste wood

      Output

    • Textile

      Output

      Woven bag

      Output

    • Green waste

      Output

      Rapeseed straw

      Output

      Organic waste

      Output

      Wheat straw

      Output

    • Newspaper

      Output

      Cardboard

      Output

      File

      Output

      Books

      Output

    • Aluminum cans

      Output

      Cable

      Output

      Keyboard

      Output

    Can handle the following materials

    Success stories

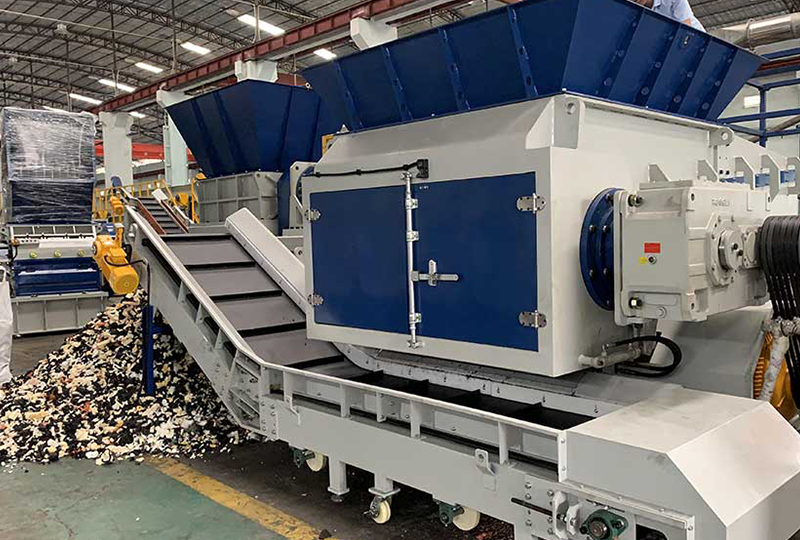

    Mainly used for processing shredded plastic packaging containers, with a uniform discharge of about 30mm, and a movable knife that can be used on four sides
    Small single shart shredder

    READ MORE

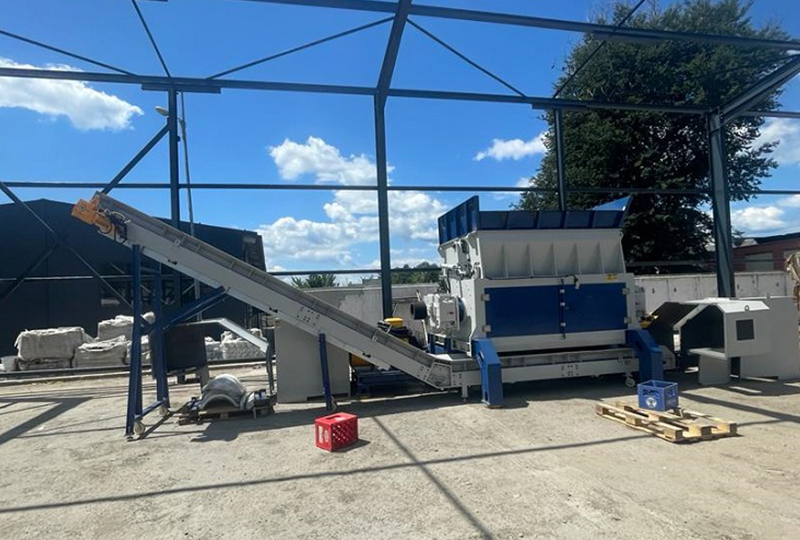

    Processing textile scraps, with a daily production capacity of 100 tons, to obtain finished SRF as a substitute fuel for fossil fuels
    Textile shredder

    READ MORE

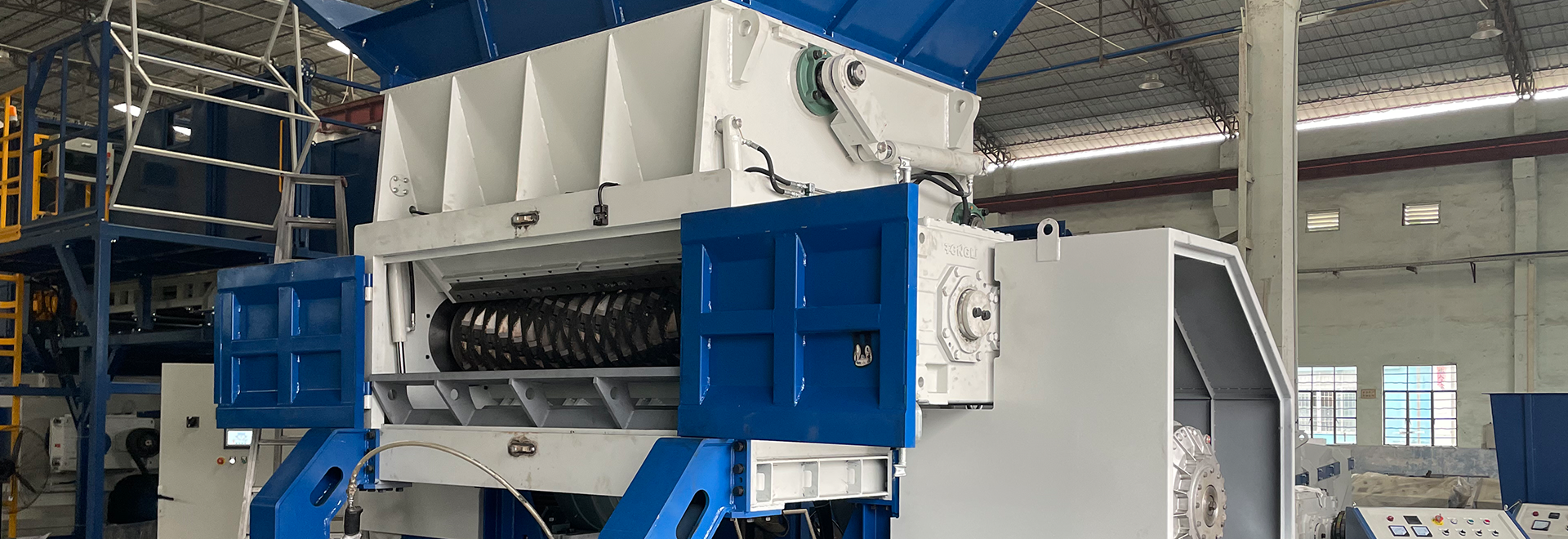

    Used to process packaged plastic bottles and plastic films, with a feed size of 1200 * 1200 * 1200mm and a discharge size of 40mm
    Packaging material shredder
