Single axis shredder

The single axis shredder is mainly composed of a blade spindle, a fixed blade, a bearing box, a box bracket, a feeding system, a hydraulic pushing system, a power system, and an electrical control system. Mainly used for tearing up waste materials such as wood, rubber, plastic, paper, etc

Four axis shredder

+Bucket products: plastic buckets, metal buckets, paint buckets, IBC buckets, garbage bins, etc
+Solid waste: large waste, household waste, medical waste, kitchen waste, industrial waste, garden waste, etc
+Plastic products: plastic pallets, plastic bottles, plastic frames, plastic blocks, plastic containers, etc
+Metal products: aluminum alloy, waste cast aluminum parts, oil filters, car casings, cans, etc
&Nbsp+ Paper: Newspaper, cardboard, corrugated paper, photocopy paper
+Electronic appliances: refrigerators, circuit boards, laptop casings, TV casings, small home appliance casings, CDs, etc
+Glass products: glass wool, glass cups, glass bottles, etc
+Paper mill waste: Paper mill light residue, paper mill twisted ropes, paper mill scraps, etc

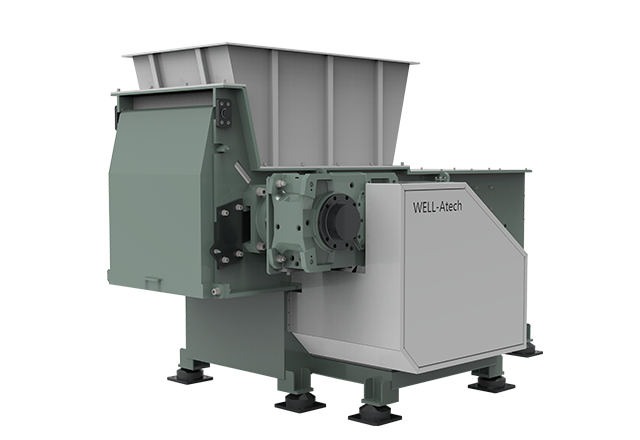

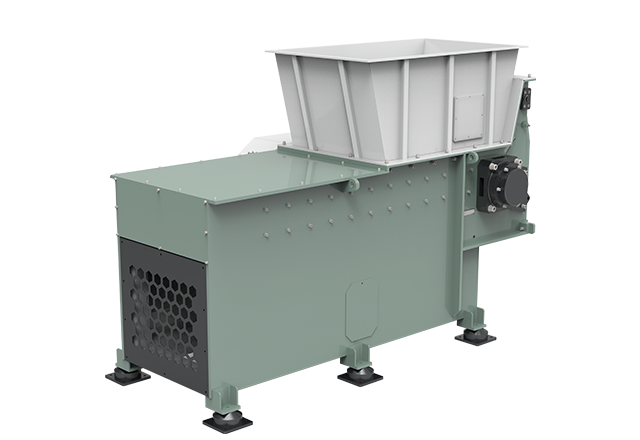

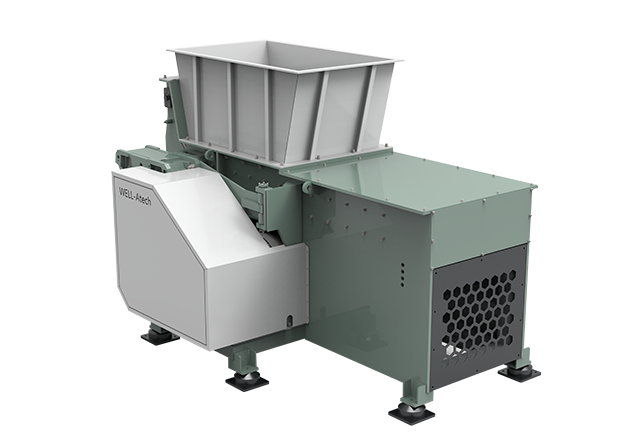

The WEF series intelligent single axis shredder is mainly composed of a blade spindle, a fixed blade, a bearing box, a box bracket, a feeding system, a hydraulic pushing system, a power system, and an electrical control system
Working principle:The material enters the interior of the shredding box through the feeding system, and the box is equipped with shredding blades. The pushing box pushes the material to the vicinity of the blades. The material is then shredded into small pieces through the comprehensive effects of tearing, squeezing, and shearing by the shredding blades, and discharged from the sieve holes
Features and advantages:1. Suitable for tearing materials with strong entanglement, allowing for a small amount of light and thin metal objects in the material; 2. The cost of using and maintaining cutting tools is relatively low; 3. Convenient tool replacement; 4. The material size can be adjusted according to the size of the sieve aperture

Equipment modelKnife box specifications (mm)
Main knife diameter (mm)
Power (KW)
Weight (T)
Dimensions (L * W * H mm)
WEF400
400 * 300
&Empty; 180
1.5
0.6850 * 600 * 1650
WEF600
660 * 500
&Empty; 230
7.511400 * 910 * 1800
WEF800
800 * 600
&Empty; 245
2 * 111.81950 * 1200 * 2065
WEF900
900 * 800
&Empty; 290
2 * 18.53.52300 * 1320 * 3000
WEF1000
1000 * 1200
&Empty; 320
2 * 22
62810 * 1400 * 2730
WEF1300
1300 * 1400
&Empty; 430
2 * 15+2 * 30
13.53600 * 1650 * 2930
WEF1600
1600 * 1400
&Empty; 534
2 * 30+2 * 45
174160 * 2200 * 3630
