Double - shaft shredder

    WED - Double shaft shredder

    WEDS - Double shaft shredder

    Efficient and reliable crushing equipment

    Double-shaft shredder is widely used in high and low-speed shredding equipment. With its unique rotor and cutting chamber design, the rotor blades and counter blades
    cut materials perfectly, ensuring uniform cutting and reasonable reduction of raw material dust. This design also reduces wear on the knives and the screen.
    The rotor shaft surface can accumulate a wear-resistant welding layer, making the shredder more suitable
    for materials that are easily worn, thus providing maximum abrasion performance and better utilization rates.

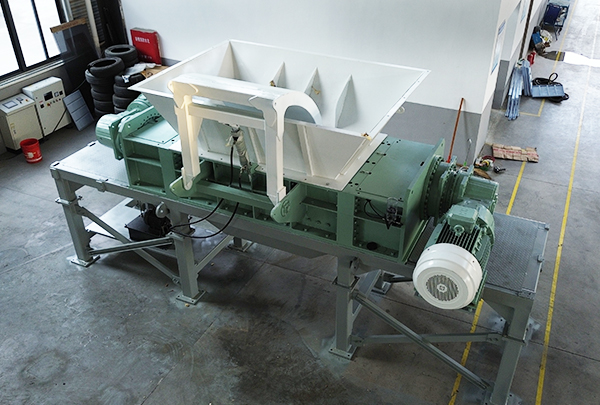

    WED series double shaft shredder driven by single motor and gearbox. Drive two shafts at the same time by gears to achieve the shredding of material.  This series is light load shearing type shredder, which has compact structure and small footprint. But it has strong core strength, adopts high alloy steel blades ,42CrMo shaft, and detachable counter blade design.

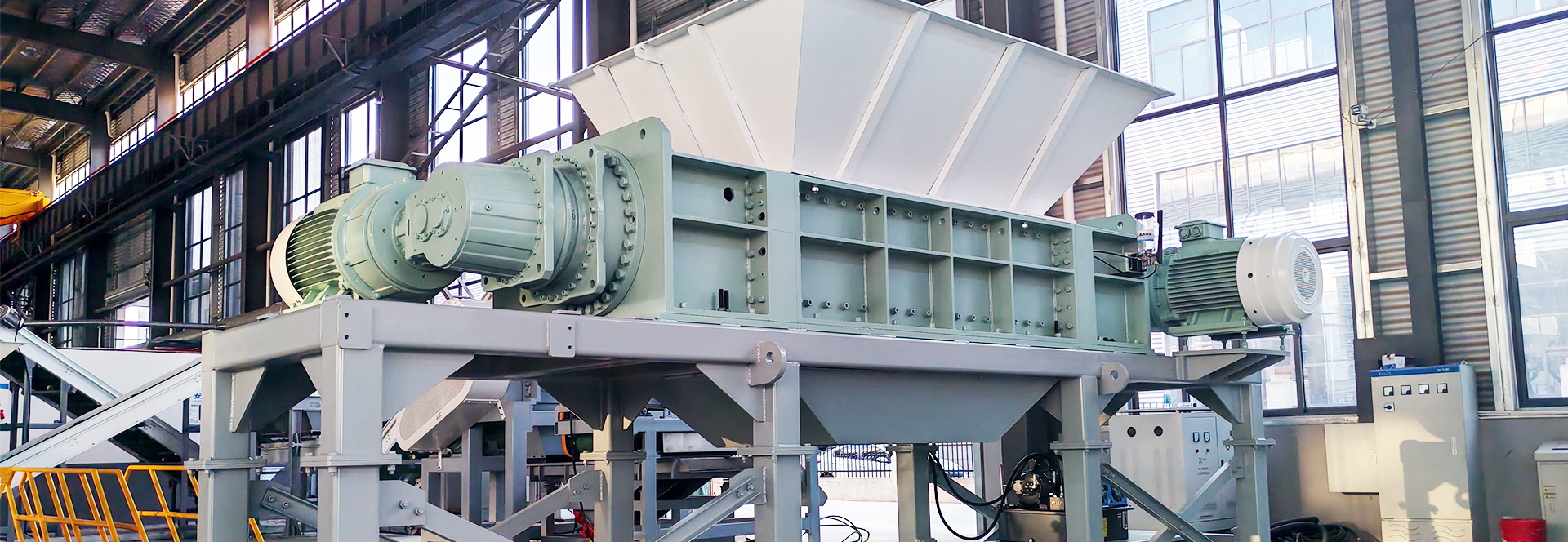

    WED-S series double shaft shredder driven by double motor and double planetary gearbox. Based on the principle of shearing, the material is shredded by relative rotation of two sets blades.Since the strong power and high stability
    of this shredder, it is often used for MSW treatment, resource regeneration, pretreatment of refuse burning and other environmental protection field.

    Our product advantages

    Motor + reducer drive system, low speed and high torque, strong shredding ability.

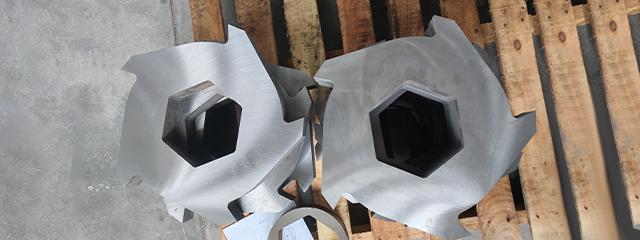

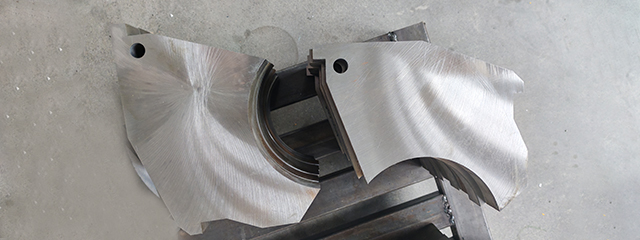

    Heat treated rotor knives—Special DC53 steel (hardened) four edges use before replacement.
    Can add press device to improve the shredding efficiency and increase the production capacity.
    Using ultra-high strength steel plate and wear-resistant steel plate, wear-resistant and durable, long service life.
    Long life, adjustable fixed blades — Cutter clearance can be maintained.
    Wear Resistant – Tungsten surface coating for abrasive applications.
    DILLIGUR / HARDOX Imported raw material NiCrMo High alloy steel.
    Adjustable blade thickness & Teeth number.

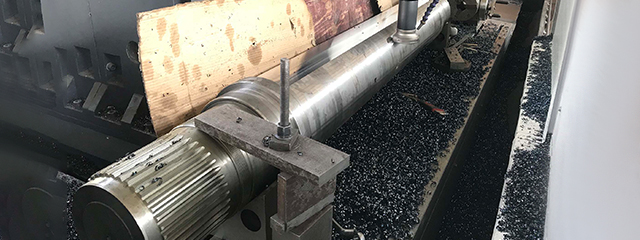

    Adopts 42CrMo high alloy steel, ensure its good mechanical strength and shock resistance.Splined blade teeth with hex shaft for uniform torque distribution to extend the life of the spindle.

    Can add press device to improve the shredding efficiency and increase the production capacity.


    Counter blades on both sides of shredding chamber can prevent material from winding.
    Individually removable design for easy maintenance.

    Which model suits your needs?

    Specification
    		WED-450WED-600
    		WED-800
    		WED-1000
    		WEDS-1000
    		WEDS-1200
    		WEDS-1600
    		WEDS-1800
    		WEDS-2000
    Crushing chamber
    		350*450 mm
    		600*550 mm
    		800*600 mm
    		1000*700 mm
    		1000*700mm
    		1200* 800 mm1600* 1100 mm
    		1800*1000 mm
    		2100*1300 mm
    Rotor diameter
    		234 mm
    		280 mm
    		305 mm
    		330 mm
    		330 mm
    		400 mm550 mm
    		500 mm650 mm
    Knife qty
    		34/18
    		30/20
    		42/26
    		34
    		34
    		40/20
    		26
    		3034
    Power
    		5.5 kW15 kW22 kW30 kW
    		30+30 kW45+45 kW90+90 kW75+75 kW200+200 kW
    Weight
    		600 kg1,200 kg
    		1,800 kg2,200 kg4,500 kg8,000 kg1,6000 kg2,2000 kg2,9000 kg
    Dimension (Length)
    		1,320 mm2,240 mm2,500 mm2,510 mm3,150 mm4,100 mm5,630 mm6,110 mm6,700 mm
    Dimension (Width)
    		800 mm1,050 mm1,120 mm1,865 mm2,150 mm2,300 mm3,160 mm4,957 mm3,700 mm
    Dimension (Height)
    		1,800 mm2,020 mm2,230 mm2,550 mm2,500 mm2,800 mm3,200 mm5,520 mm3,600 mm





    • Wooden cabinet

      Output

      Mattresses

      Output

      Furniture

      Output

      Wood pallet

      Output

      Branch

      Output

      Sofa

      Output

    • Displayer

      Output

      E-waste

      Output

      Keyboard

      Output

      PCB Boards

      Output

    • Leather

      Output

      Coal cinder

      Output

      Tires

      Output

      Textile

      Output

    • Plastic

      Output

      Plastic baskets

      Output

      Packing strap

      Output

    • Oil drum

      Output

      Scrap car shell

      Output

      Paint buckets

      Output

      Aluminum alloydie-casting parts

      Output

    • Newspaper

      Output

      Cardboard

      Output

      New aterials

      Output

    Can handle the following materials

    Success stories

    Capacity：1-10tons/h
    Scrap tire shredder is designed to process and recycle old or scrap tires into usable materials such as rubber, steel wire, and textile fibers.
    Scrap Tires Shredder

    READ MORE

    Capacity：5-8tons/h
    Provide high productivity industrial shredders and crushers for the processing of bulky waste.The processing capacity of the bulky waste shredder can reach 5000-8000 kg/h.
    Bulky Waste Shredder

    READ MORE

    Capacity：3-10tons/h
    The drive mode can be selected from two drive modes: motor and hydraulic. It can also be equipped with a pressing device according to customer needs when processing materials with different characteristics to increase the shredding capacity.
    Industrial Waste Shredder

    READ MORE
